Reflector LED de la Serie Zoom L

Inicio 9 Producto 9 Reflector LED de la Serie Zoom L

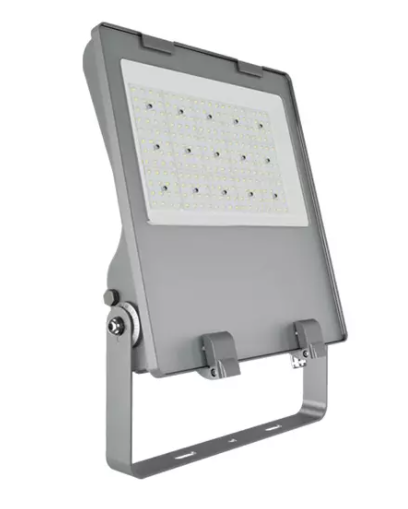

Reflector LED de la Serie Zoom L

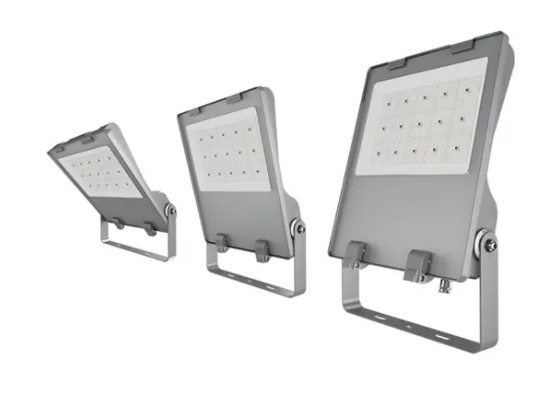

Reflector LED de la Serie Zoom L - Imagen 2

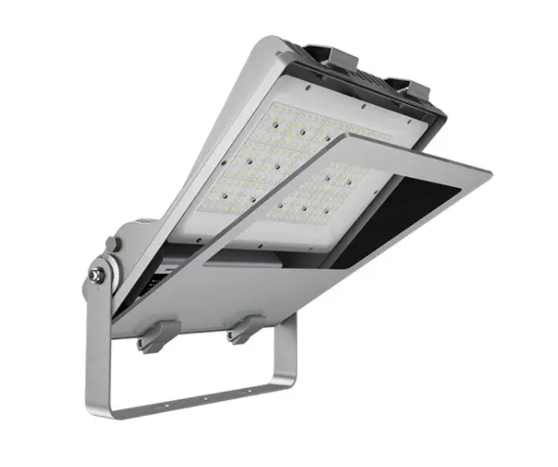

Reflector LED de la Serie Zoom L - Imagen 3

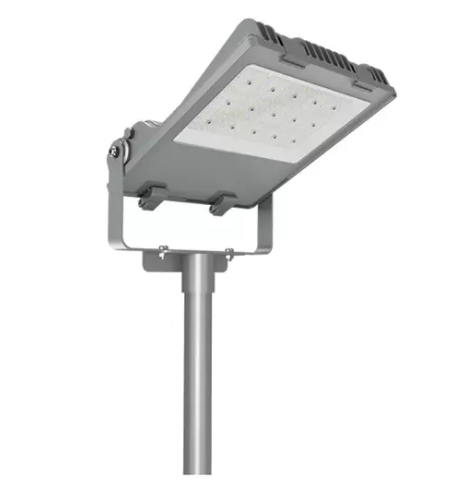

Reflector LED de la Serie Zoom L - Imagen 4

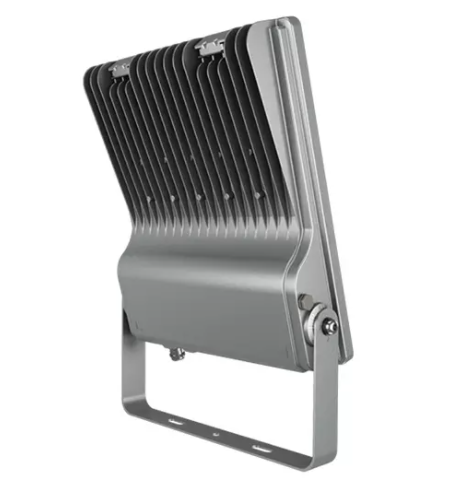

Reflector LED de la Serie Zoom L - Imagen 5

Reflector LED de la Serie Zoom L

Categoría: Reflector LED

Descripción

CARACTERÍSTICAS TÉCNICAS

3030 Versión

Version	Model	Power	Luminaire Efficacy (+/-5%)	Lumen Output (+/-5%)	Input Volate	LED Brand	Driver Brand	Distribución de la luz	CCT (K)	SPD	Lifetime
M	ZGSM-FL07-60M	60W	150 lm /w	9000 lm	100-240V /277V AC 50 /60Hz	Philips Lumileds	Inventronics(Default) /Other brands on request	25°, 60°, 90°, 120° or Asymmetrical	3000* 4000 5000 5700	10KV (Build-in Driver) /Extra 10KV SPD (Available on request)	>100,000 (L70)
	ZGSM-FL07-60M+	60W	165 lm /w	9900 lm
	ZGSM-FL07-80M	80W	145 lm /w	11600 lm
	ZGSM-FL07-80M+	80W	160 lm /w	12800 lm
	ZGSM-FL07-100M	100W	145 lm /w	14500 lm
	ZGSM-FL07-120M	120W	145 lm /w	17400 lm
L	ZGSM-FL07-150L	80W	145 lm /w	21750 lm
	ZGSM-FL07-150L+	80W	160 lm /w	24000 lm
	ZGSM-FL07-180L	100W	150 lm /w	27000 lm
	ZGSM-FL07-180L+	120W	155 lm /w	27900 lm
	ZGSM-FL07-200L	150W	145 lm /w	29000 lm
	ZGSM-ST17-240L	150W	140 lm /w	33600 lm

5050 Versión

Version	Model	Power	Luminaire Efficacy (+/-5%)	Lumen Output (+/-5%)	Input Volate	LED Brand	Driver Brand	Distribución de la luz	CCT (K)	SPD	Lifetime
M	ZGSM-FL07-60M	60W	160 lm /w	9600 lm	100-240V /277V AC 50 /60Hz	Philips Lumileds	Inventronics(Default) /Other brands on request	25°, 60°, 90°, 120° or Asymmetrical	3000* 4000 5000 5700	10KV (Build-in Driver) /Extra 10KV SPD (Available on request)	>100,000 (L70)
	ZGSM-FL07-60M+	60W	170 lm /w	10200 lm
	ZGSM-FL07-80M	80W	155 lm /w	12400 lm
	ZGSM-FL07-80M+	80W	165 lm /w	13200 lm
	ZGSM-FL07-100M	100W	155 lm /w	15500 lm
	ZGSM-FL07-120M	120W	155 lm /w	18600 lm
L	ZGSM-FL07-150L	80W	155 lm /w	23250 lm
	ZGSM-FL07-150L+	80W	165 lm /w	24750 lm
	ZGSM-FL07-180L	100W	160 lm /w	28800 lm
	ZGSM-FL07-180L+	120W	165 lm /w	29700 lm
	ZGSM-FL07-200L	150W	155 lm /w	31000 lm
	ZGSM-ST17-240L	150W	150 lm /w	36000 lm

Working Environment & Packing

Model	Product Dimensions (mm)	Carton Size (mm)	N.W (kg)	G.W (kg)	Working Environment	Storage Temperature	Rating	CRI	Power Factor	Power Efficiency	Material
ZGSM-FL07-60M	44732190	425385140	4.4	4.9	-40 ºC ～ +50 ºC 10%～90%RH	-40 ºC ～ +50 ºC	Class I (Default) /Class II IP66 IK09	>70	>0.95	>90%	Housing: High pressure die-cast aluminum Lens: UV-resistant Polycarbonate
ZGSM-FL07-60M+	44732190	425385140	4.4	4.9
ZGSM-FL07-80M	44732190	425385140	4.4	4.9
ZGSM-FL07-80M+	44732190	425385140	4.4	4.9
ZGSM-FL07-100M	44732190	425385140	4.4	4.9
ZGSM-FL07-120M	44732190	425385140	4.4	4.9
ZGSM-FL07-150L	49537890	470443143	6	6.7
ZGSM-FL07-150L+	49537890	470443143	6	6.7
ZGSM-FL07-180L	49537890	470443143	6	6.7
ZGSM-FL07-180L+	49537890	470443143	6	6.7
ZGSM-FL07-200L	49537890	470443143	6	6.7
ZGSM-ST17-240L	49537890	470443143	6	6.7

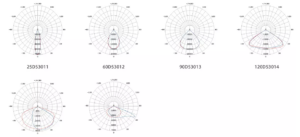

DISTRIBUCIÓN DE LUZ
